Descripción de Producto

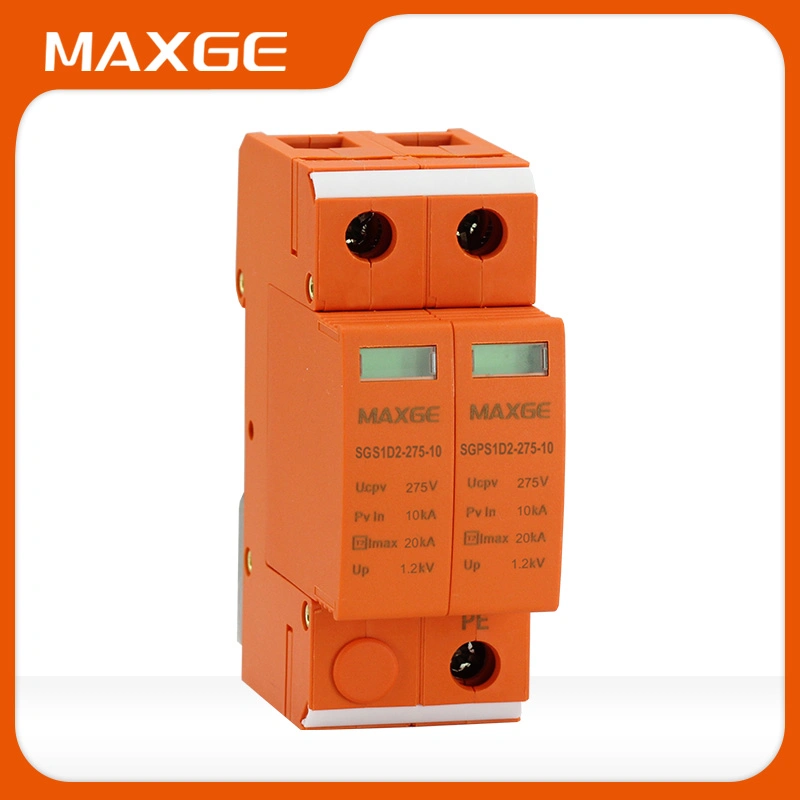

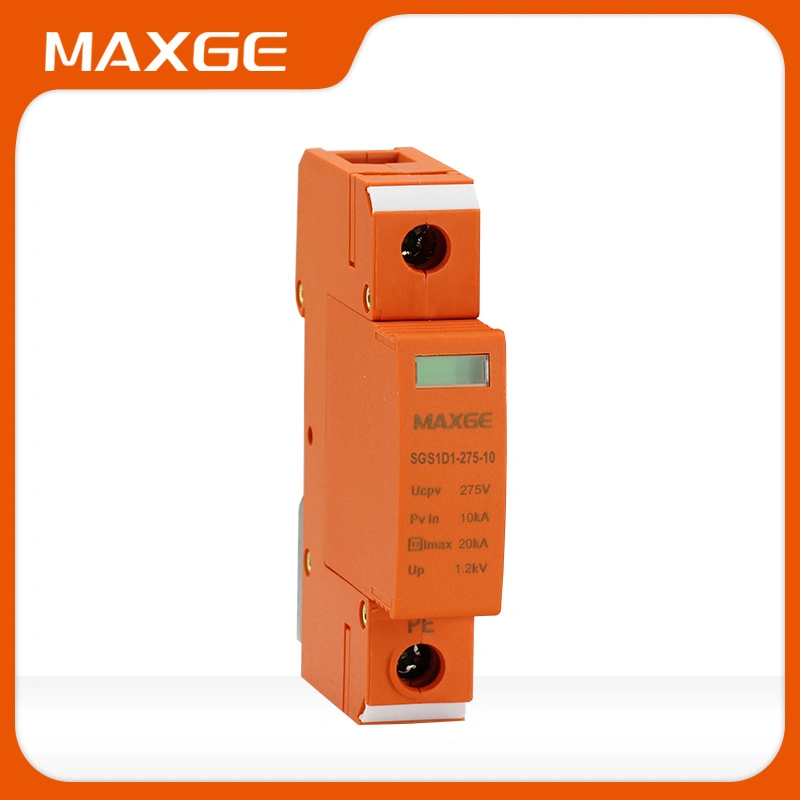

Maxge SGS1 Series el dispositivo de protección contra sobretensiones SPD Protector Lightning
Standard | IEC61643-1 | Nivel de protección de(KV) | < 1.3/1.4/1.5/1.6/1.7/1.8/2.2/2.5/3.0 KV |
La protección | Proteger el sistema eléctrico y de carga de aparatos eléctricos de Trueno y instantanteous rev. | Tiempo de respuesta (ns). | < 25 |
La temperatura ambiente(ºC) | -40 a+70 | Encendido/apagado de la ventana que indica | Verde: La función normal Rojo: Functionless, sustitución inmediata necesaria |
Número de polos | 1p, 2p, 3p, 4p | Tipo de terminal | Tipo de pasador |
El máximo continuo. Uc volttage operativo(V~) | 275/320/385/440V | La instalación | Montaje sobre carril DIN de 35mm |
Descarga estándar La corriente (8/20 μs) (KA) | 20/40/60/80/100 KA | Sistema de tierra | TT/TN |
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/12c11c8c5df14e086c3c6381d82bf99d.jpg)
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/551aa7ad5528228a4a6a04ba7cdd39c5.jpg)
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/053d874b90b7c151b47bdfb9cc311e50.jpg)
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/f74f2b9479d4b458ce34429873cc613d.jpg)
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/7d334a26bdd09923223b37f9668b239b.jpg)
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/c91a3db6ea0a73e1fa599dbc4e696ddf.jpg)
![SGS1 Series Surge Protective Device SPD Lightning Protector](https://img3.grofrom.com/medicjlco/9be6146f4a92df1ea1842a37fae092fa.jpg)
